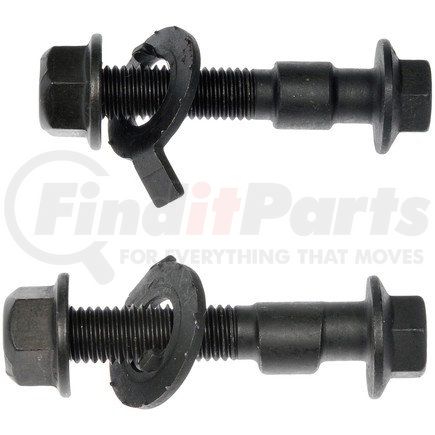

DORMAN 545-509 - Alignment Cam Bolt Kit
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DORMAN part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Alignment Cam Bolt Kit
Application Summary
Lexus 2022-90, Pontiac 2010-03, Scion 2014-05, Toyota 2022-83
Features & Benefits
- Direct replacement - fits and performs like the original equipment on specific vehicles
- Reliable fit - precision-engineered to match the design and dimensions of original components
- Durable construction - manufactured to strict standards using sturdy, safe materials
- Rigorously tested - thorough quality control measures ensure longevity
Alignment, Cam, Bolt, Kit
Product Attributes
| Adjustment Type | Manual |
| Color | Black |
| Bolt Grade | 12.9 |
| Nut Included | Yes |
| Mount Stud Quantity | 0 |
| Grease Fitting Included | No |
| Thread Length | 50 MM |
| Mounting Hole Quantity | 1 |
| Washer Material | Steel |
| Washer Color | Black |
| Cam Minimum Width | 14 MM |
| Cam Maximum Width | 15 MM |
| Cam Thickness | 17 MM |
| Bushing Material | None |
| Mounting Hole Diameter | 17 MM |
| Bolt Length | 80 MM |
| Bolt Thread Diameter | 14 MM |
| Adjustment Range | */- 1.75 deg |
| Bolt Thread Pitch | 2.0 mm |
| Package Contents | 2 Cam Bolts; 2 Cam Washers; 2 Lock Nuts |
| Washer Included | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7318290000 |
| UPC | 00885484724877 |
| VMRS Code | 016001035 |
| UNSPSC | 25172001 |
Part Interchanges
Fits Vehicles
- Lexus RX350L (2018-2022)
- Lexus RX450hL (2018-2022)
- Lexus ES300h (2013-2022)
- Toyota Venza (2009-2015)
- Toyota Prius Plug-In (2012-2015)
- Toyota Prius V (2012-2018)
- Toyota Prius (2010-2022)
- Lexus RX450h (2010-2022)
- Lexus RX350 (2007-2022)
- Lexus ES350 (2007-2021)
- Toyota RAV4 (2006-2018)
- Lexus RX400h (2006-2008)
- Scion tC (2005-2014)
- Lexus RX330 (2004-2006)
- Lexus ES330 (2004-2006)
- Toyota Solara (1999-2008)
- Toyota Sienna (1998-2020)
- Toyota Previa (1991-1997)
- Toyota Matrix (2003-2013)
- Toyota Corolla (2003-2008)
- Toyota Camry (1983-2014)
- Toyota Avalon (1995-2022)
- Toyota Highlander (2001-2016)
- Lexus RX300 (1999-2003)
- Lexus ES300 (1992-2003)
- Lexus ES250 (1990-1991, 2021-2022)
- Pontiac Vibe (2003-2010)
