STEMCO part description

Product Description

Trailer Axle Wheel Assembly - Trailer Wheel Set

Application Summary

19,000# Trailer Axle Standard Forge, Dana, Meritor, Eaton

Product Attributes

Axle Ring 315-1507
BEARING GUIDE 570-0023
GASKET NUMBER 330-3013
HUB CAP WITH GASKET 340-4013
INNER BEARING CONE 663
INNER BEARING CUP 653
INSTALL HANDLE/BODY 555-0001

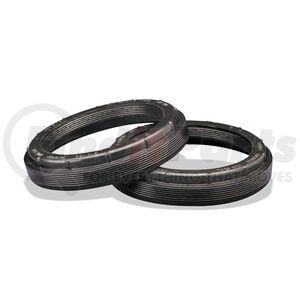

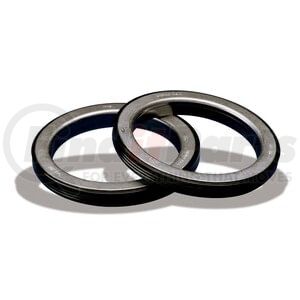

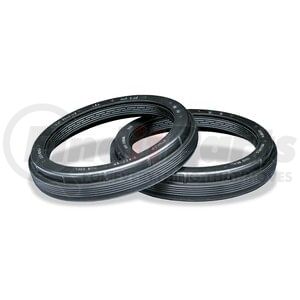

Notes For Guardian® HP Seal No. 307-0713, 5.750" Bore, See Pg. 16 For Voyager® Seal No. 373-0113, 5.750" Bore, See Pg. 18 For Discover® Seal No. 373-0213, 5.750" Bore, See Pg. 18
OIL SEAL 320-2109
OUTER BEARING CONE HM212049
OUTER BEARING CUP 560
UNIVERSAL AXLE TOOL HEAD 555-5100
UNIVERSAL HUB TOOL HEAD 551-5313

Additional Information

Harmonized Tariff Code (HTS) 4205008000
UPC 703832134843
VMRS Code 018004001

Part Interchanges

STEMCO® is a recognized global leader in manufacturing and supplying a comprehensive line of high-performance systems and components to the commercial vehicle industry. Its wide range of products includes wheel-end components, such as fasteners, hubcaps, bearings, seals, and mileage counters, and brake parts, which include brake drums, brake pads, and adjusters. It also offers suspension products like spring pins, king pin kits, polyurethane suspensions, tie rod assemblies, and mount and blocking components. All these products are made to the highest quality and safety standards to ensure superior performance and maximum durability even when used in the harshest of conditions. STEMCO is ISO-9001:2015 certified.
