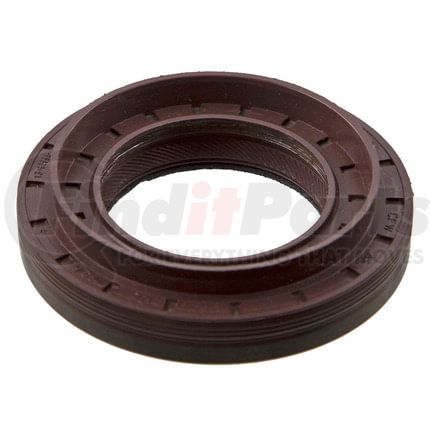

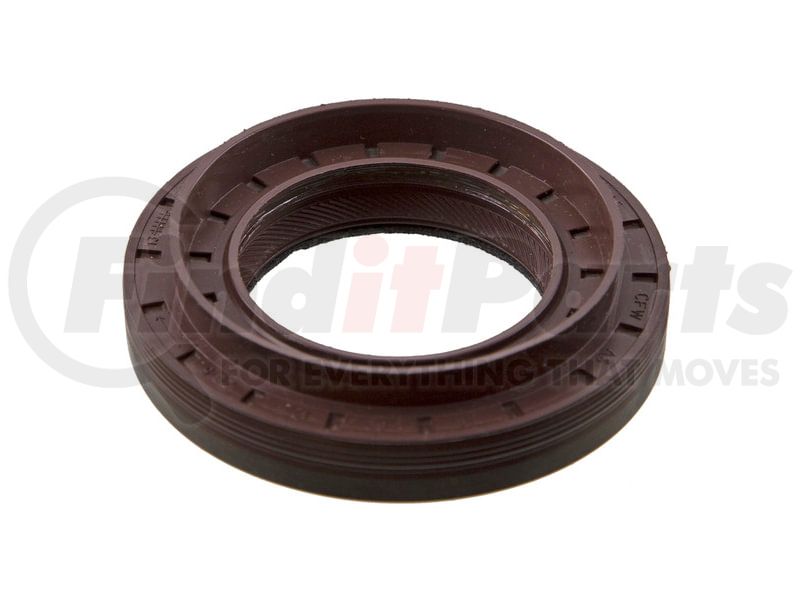

Name: National Seals 711056 Differential Pinion Seal
SKU: 711056
Price: 28.49 USD
Availability: InStock

NATIONAL SEALS part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Differential Pinion Seal

Application Summary

2007-2009 Dodge Sprinter 2500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential); 2007-2009 Dodge Sprinter 3500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential); 2007-2018 Freightliner Sprinter 2500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential); 2007-2018 Freightliner Sprinter 3500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential); 2010-2018 Mercedes-Benz Sprinter 2500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential); 2010-2018 Mercedes-Benz Sprinter 3500 (Rear Outer) (Qualifier: with Mercedes-Benz HLO/30 Differential)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40°F to 400°F / -40°C to 204°C
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.890 IN
Inside Diameter	48.000 MM
Outside Diameter	3.236 IN
Outside Diameter	82.200 MM
Width	0.472 in
Width	12.000 MM
Material	Fluoro-Elastomer
Helix Type	Clockwise-Spiral Lip Design
Part Description	Oil Seal
Series	711000
Thickness	0.472 IN
Thickness	12.000 MM
Type	40
Unit of Dimension	Metric
Housing Bore	3.228 IN
Housing Bore	82.000 MM
Overall Width with Side Lip	20.500 MM
Overall Width with Side Lip	0.807 in
Shaft Diameter	1.890 IN
Shaft Diameter	48.000 MM
