821R-7/822R-7 LumenX® Oval LED Stop, Turn and Tail Light, PL3

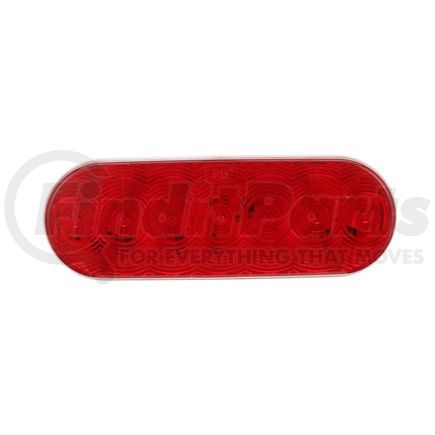

Peterson Lighting LumenX® Oval LED Stop, Turn & Tail Light

For enhanced trucking safety, equip your truck with a high-quality Peterson Lighting LumenX® oval LED stop, turn & tail light. This product effectively combines all three crucial functions—stop, turn, and tail— into one industry-standard light.

Features & Benefits

  • A grommet-mount 7-diode oval LED with white diodes behind the red lens
  • With a fully illuminated lens because of advanced optics
  • Comes with an industry-standard PL3 socket that is integrated into the housing
  • Provides voltage protection and consistent light output over the entire voltage range with its regulated design
  • Product’s operating range is 9 to 16 volts
  • Designed to meet FMVSS 108 requirements in vertical, horizontal, or any 360-degree position
  • Engineered to meet the needs of any stop tail turn lighting situation

Product Description

LED STOP/TURN/TAIL, OVAL, GROMMET-MOUNT, 6.5"X2.25"

Features & Benefits

  • 7 diodes.
  • Available in retail-friendly Viz Pack.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • White diodes behind red lens.
  • Advanced optics fully illuminate lens.
  • Industry-standard PL3 socket integrated into housing.
  • 822-7 has flange welded to light, forming a single unit.
  • 9–16 volt operating range.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Meets FMVSS 108 requirements in horizontal, vertical or any 360° position.
  • 821 kit includes light, grommet and 421-491 plug.
  • 822 kit includes light and 421-491 plug.

421-18: grommet (poly pack - std qty 12)

Product Attributes

Bulb Technology LED
Bulb/diode Count 7
California Proposition 65 Required Y
Container Type poly bag
Family LumenX
Height 2.31 in
Integral Reflex N
Length 6.5 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Regulatory Compliance DOT
Shape oval
Termination PL3
Voltage 12 Volts
Width 1.45 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464993171
VMRS Code 034002059

Part Interchanges

PETERSON LIGHTING 821R-7 Cross Reference

We have 1 alternatives for the 821R-7 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
