PETERSON LIGHTING part description

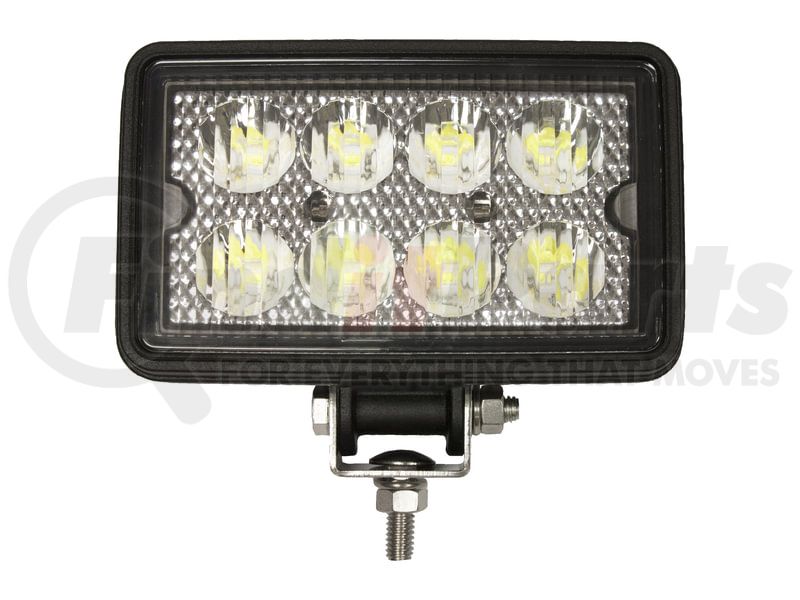

903-MV Great White® 3"x5" LED Rectangular Work Light

Features & Benefits

  • 8 bright white LED diodes
  • Low AMP Draw, long life. vibration resistance
  • Cast aluminum body with built-in heat sink
  • Heat dissipation, durability
  • Polycarbonate lens for impact resistance
  • Stainless-steel mounting hardware for corrosion resistance
  • Hard-wired leads for durability and corrosion resistance
  • Flood beam pattern for intense light right where it's needed
  • 10-32 VDC operating range
  • Reverse voltage protection.
  • 2-conductor black PVC jacketed harness 18GA GPT wire
  • 2000 Lumens

Product Description

LED WORK LIGHT, RECTANGULAR, PEDESTAL-MOUNT 2000 LUMEN 3"X5" MV

Features & Benefits

  • 8 diodes.
  • Hardwired design.
  • Multivolt version available.
  • Voltage Regulated.
  • Bright, even flood pattern.
  • Extra-rugged, commercial-grade construction.
  • Impact-resistant polycarbonate lens.
  • Die-cast aluminum body with black finish.
  • Heat dissipating fins for durability and longevity.
  • High vibration resistance and low amp draw.
  • Compatible with both 12 and 24-volt systems.
  • 9–32 VDC operating range.
  • Reverse voltage protection.
  • Draws 2.65A @ 12V, 1.0A @ 24V.
  • 2-Conductor black PVC jacketed harness.
  • IP67 rated.
  • Stainless steel mounting hardware.
  • Certified to ECE Reg 10.

Product Attributes

Mounting Type stud
Beam Pattern flood
Bulb Technology LED
Bulb/diode Count 8
California Proposition 65 Required Y
Coil Cord N
Container Type box
Exterior Use Y
Family Great White
Height 4.57 in
Integral Switch N
Length 5.87 in
Lens Color clear
Light Color white
Marine Use N
Maximum Voltage 32 Volts
Minimum Voltage 9 Volts
Multi-volt Y
Regulatory Compliance ECE
Shape rectangular
Termination stripped wire
Voltage 12 Volts
Width 1.69 in

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464992389
VMRS Code 053006293

Part Interchanges

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
