GROTE part description

PRODUCT NUMBER

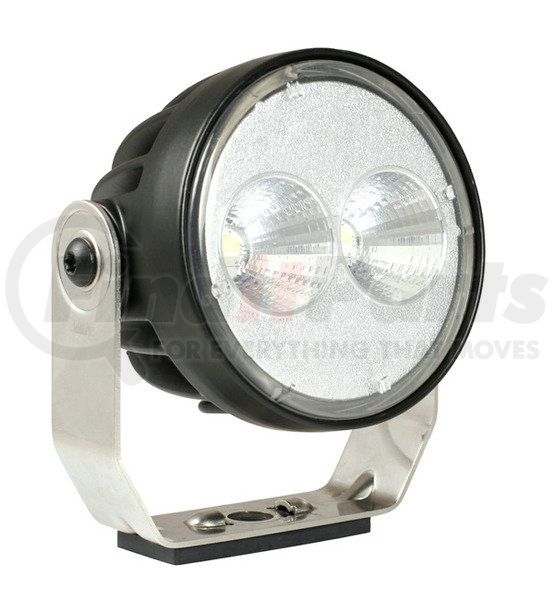

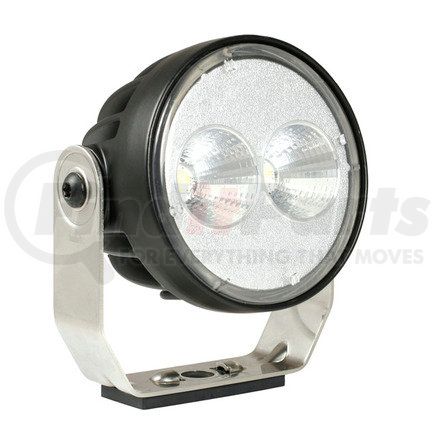

64e01 - Pinch Mount, Far Flood

FEATURES & BENEFITS

Efficient light engine projects 1790 effective Lumens using only 18 Watts of power across 10-48 Volts.
Rugged mechanical design ensures consistent performance and long life in the harshest environments.
Small size combined with tough construction allows mounting in places where larger or less rugged lamps cannot fit or survive.
Advanced circuit design provides electronically quiet operation; protects against EMI without interfering with other electronic devices.
Clean, white light designed to represent true colors, just like day light.


OTHER PRODUCT NUMBERS
64g11 - Pendant Mount, Near Flood
64e11 - Pinch Mount, Near Flood
64g01 - Pendant Mount, Far Flood
64e01-5 - Pinch Mount, Far Flood
64e11-5 - Pinch Mount, Near Flood
64g01-5 - Pendant Mount, Far Flood
64g11-5 - Pendant Mount, Near Flood


Material: Die Cast Aluminum, Black Powder Coated Finish / UV resistant, Hard Coated Polycarbonate Lens
Finish: Black Powder Coated
Voltage Amp: Input Voltage: 10V-48V
Voltage Amp: Power Draw: 17.5W
Accessory:

Impact: SAE J575, ISO 60068-2-6:1996

Thermal Stress: SAE J1455

Ingress Protection: IP69K

Corrosion: SAE J2139
Storage Temperature Test: ISO16750-4:2003

Light Performance: IESNA LM-79
Pigtail: 68610-(64G11)

Single quantity of this product available as Grote 64E01

GROTE 64E01-3 Cross Reference

We have 3 alternatives for the 64E01-3 by GROTE:

Established in 1901, Grote® is a world-class manufacturer and supplier of light components and smart visibility systems for heavy duty vehicles. From LED beacons to trailer connectors, Grote products provide effective solutions and added value to its customers in the agricultural, construction, freight, and mining industries. The company has been a major supplier to commercial vehicle manufacturers, utilizing the latest quality planning techniques and manufacturing systems as well as rigorous environmental testing to maintain their competitive edge. Grote also works closely with OEM distributors and fleet managers in developing new ways to maximize the efficiency of their products according to the demands of the market.
