MONROE part description

Product Description

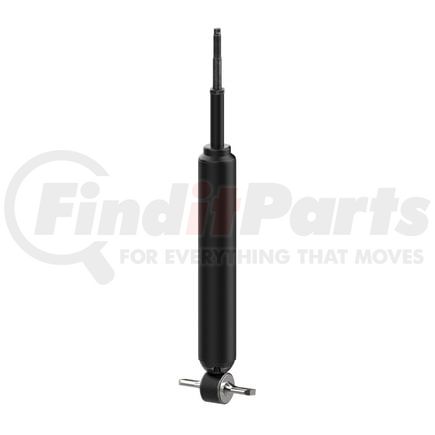

OESpectrum Suspension Shock Absorber

Features & Benefits

  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

9791 XP4
9789 S4
Dust Shield Included No
9783 No
9908 No
9792 No
Part Description Shock Absorber
Compressed Length 8.625 IN
Extended Length 13.375 in
Gas Charged Yes
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
Parts Pack(s) P01134
Travel Length 4.75 in
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598040039
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 5804 Cross Reference

We have 5 alternatives for the 5804 by MONROE:

Fits Vehicles

  • Volvo 145 (1968-1974)
  • Volvo 144 (1967-1974)
  • Volvo 142 (1967-1974)
  • Volvo 164 (1975)
  • Pontiac Tempest (1968-1970)
  • Buick Sportwagon (1968-1972)
  • Buick Special (1968-1969)
  • Nissan 411 (1964-1967)
  • Nissan 410 (1964-1965)
  • Pontiac Ventura (1971-1974)
  • Pontiac LeMans (1970-1972)
  • Pontiac GTO (1968-1972)
  • Pontiac Grand Prix (1969-1972)
  • Pontiac Firebird (1967-1969)
  • Oldsmobile Vista Cruiser (1968-1972)
  • Oldsmobile Omega (1973-1974)
  • Oldsmobile F85 (1968-1972)
  • Oldsmobile Cutlass Supreme (1968-1972)
  • Oldsmobile Cutlass (1968-1972)
  • Oldsmobile 442 (1968-1971)
  • GMC Sprint (1971-1972)
  • Chevrolet Nova (1969-1974)
  • Chevrolet Monte Carlo (1970-1972)
  • Chevrolet El Camino (1968-1972)
  • Chevrolet Chevelle (1968-1972)
  • Chevrolet Camaro (1967-1969)
  • Buick Skylark (1968-1972)
  • Buick Apollo (1973-1974)
  • Toyota Mark II (1972-1976)
  • Toyota Corona (1967-1978)
