HORTON part description

Product Description

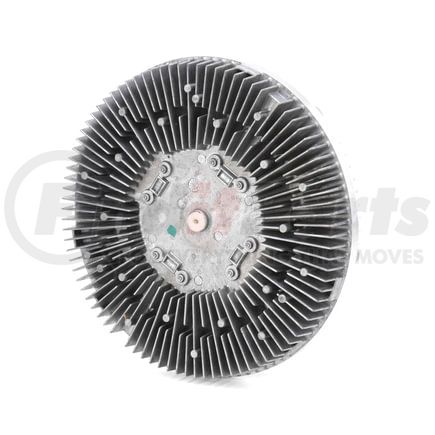

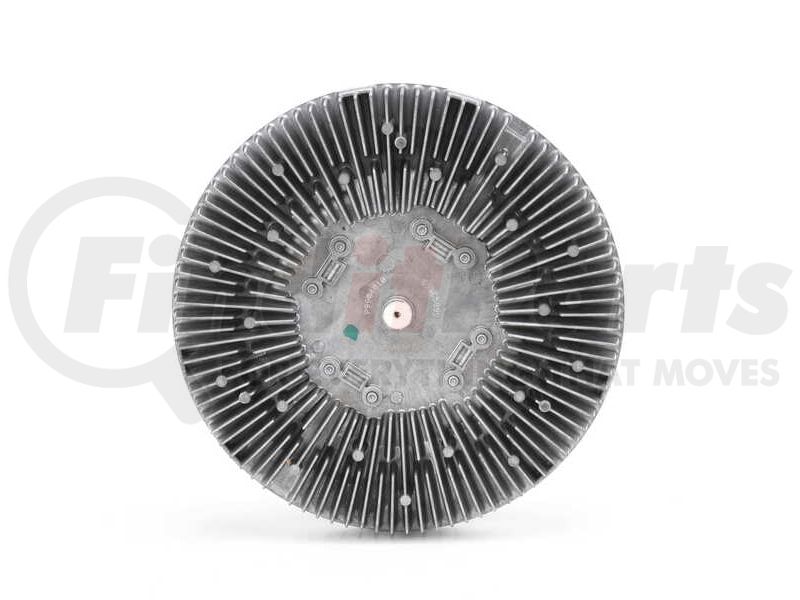

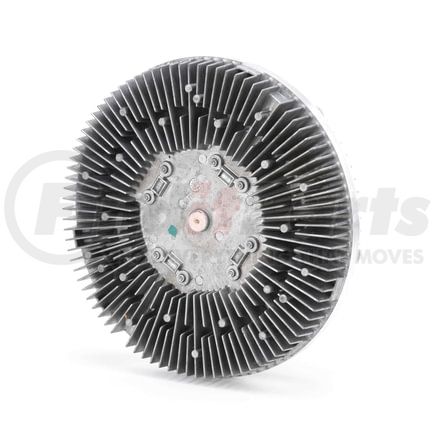

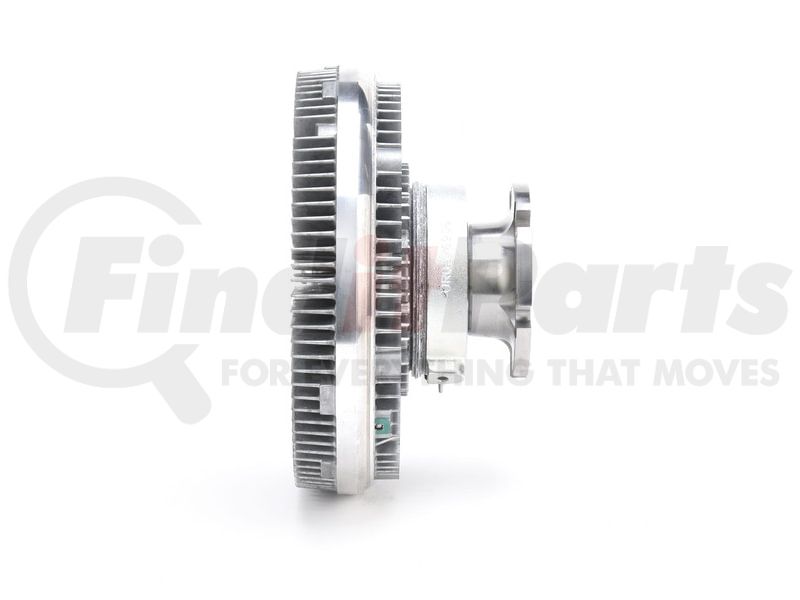

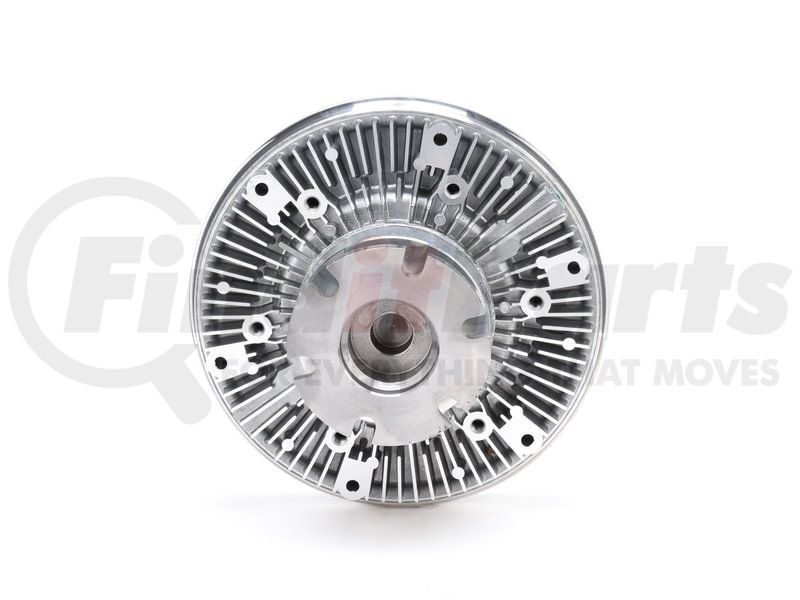

Engine Cooling Fan Clutch

Application Summary

FREIGHTLINER

Features & Benefits

  • Rapid response to changing cooling requirements
  • Enhanced fuel economy, lower noise and maximum efficiency
  • Compatible with Horton and other fan manufacturer parts
  • Simple, flexible design for easier installation

Fan clutch, drive, engine cooling system, fully variable, performance, horsepower, viscous

Product Attributes

CLUTCH TO FAN MOUNTING SURFACE 2.63 IN
Connector Type Delphi Metri-Pack Series 150
Fan Bolt Circle 6 IN
FAN PILOT DIAMETER 5 IN
Heavy Duty FALSE
LENGTH OF WIRE 9.84 IN
MOUNTING BOLT CIRCLE 2.36 IN
MOUNTING PILOT DIAMETER 2 IN
OUTER (OVERALL) DIAMETER 9.29 IN
Overall Length 5.04 IN

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8505200000
Harmonized Tariff Code (HTS) 8505200000
NAFTA Preference Criterion Code B
OEM's Part Number 9804010
Warranty Distance 100000
Warranty Distance UOM DH
Warranty Special 2500 Hours
Warranty Special UOM TX
Warranty Time 12
Warranty Time UOM MO
VMRS Code 042003036

HORTON 9904010 Cross Reference

We have 2 alternatives for the 9904010 by HORTON:
