GROTE part description

Product Description

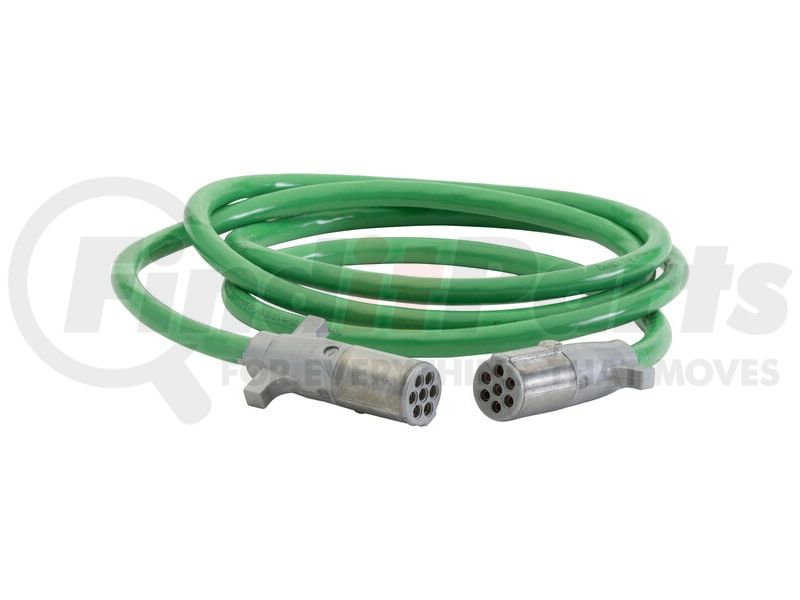

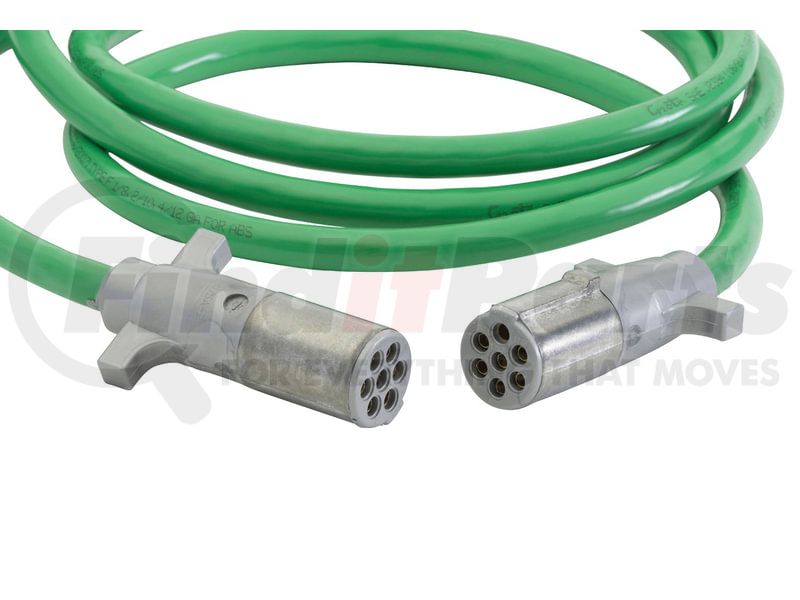

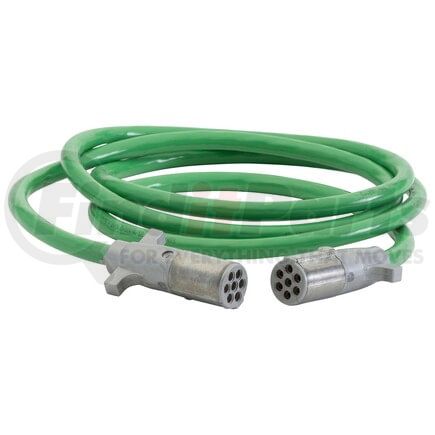

UltraLinkTM ABS Power Cords, 12', Straight, Premium

Features & Benefits

  • Adhesive bonds cable to plug, eliminating need for supporting spring and preventing moisture from entering the back of the plug
  • UltraLinkTM power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
  • Advanced polymer jacketing material provides complete sealing and abrasion protection between -55degF and 190degF (Premium Versions)
  • Zinc die-cast plugs are filled with elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
  • Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
  • Provides excellent recoil memory, chemical, and abrasion resistance

HARNESS - HARNESS, STRAIGHT,12 FT

Product Attributes

Coiled or Straight Straight
Color Green
Gauge 1/8 GA,2/10 GA,4/12 GA

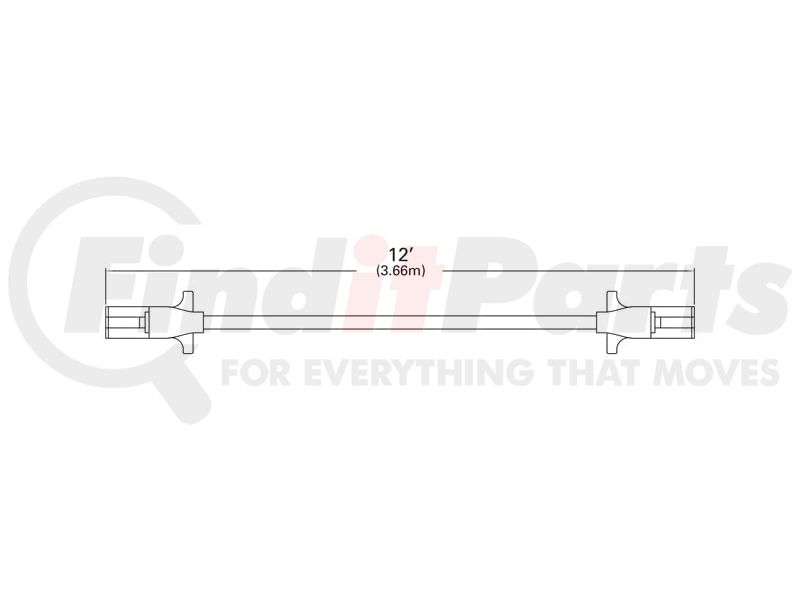

Length 12'
Material PVC
Number of Pins 7
Operating temperature -40degF to +176degF (-40degC to +80degC)
Plug Straight
Plug / Socket # 7
Regulations FMVSS 108
Standards J2394,J560b
Style ABS

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8544420000
UPC 00089373151748
VMRS Code 034003037

Part Interchanges

GROTE 87171 Cross Reference

We have 3 alternatives for the 87171 by GROTE:
