GROTE part description

Product Description

LED WhiteLightTM Recessed Mount 18" Dome Lights, 16 Diodes, White, 24V

Features & Benefits

  • Encapsulant potting for total circuit board protection
  • Wide spread optic pattern - provides wall-to-wall coverage
  • maximum of 2.7 amps during start-up
  • Robust, one-piece, aluminum housing and rugged polycarbonate lens
  • High Output
  • Low current draw
  • Built-in automatic thermal protection device
  • Reduced Diode Count, Standard Output
  • Self-resetting internal cut-off switch to protect against excessive current

DOME LAMP - 24V

Product Attributes

Amperage 1.0A
Color White
Connection Type Blunt Cut
Finish Powder Coated
Housing Color White
LED Y

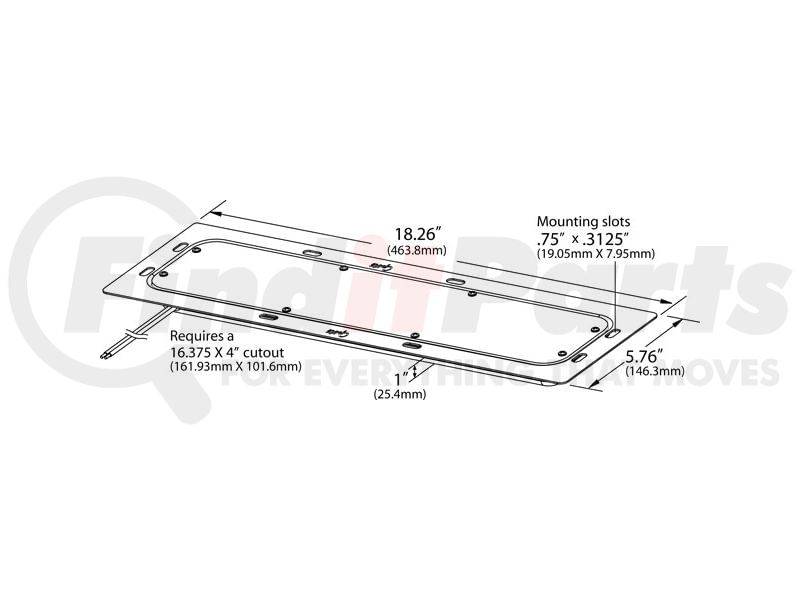

Length 18.26"
Lens Color Clear
Lumens 1000 Lumens (Effective)
Material Acrylic Lens,Aluminum Housing
Mounting Type Screw
Number of Wires 2
Operating temperature -40degF to 122degF
Shape Rectangular
Style Dome
Voltage 24V

Additional Information

Country of Origin (Primary) CA
Harmonized Tariff Code (Schedule B) 8512200000
UPC 00089373147000
VMRS Code 034004452

Part Interchanges

GROTE 61111 Cross Reference

We have 3 alternatives for the 61111 by GROTE:
