HORTON part description

Product Description

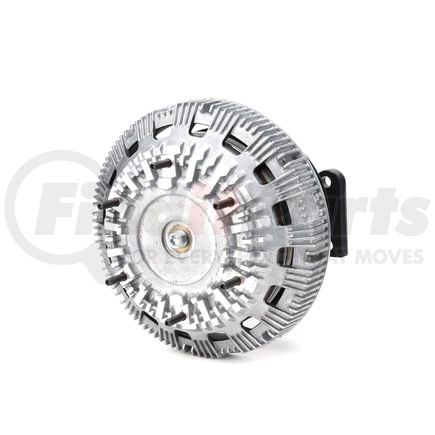

Engine Cooling Fan Clutch

Application Summary

AUTOCAR

Features & Benefits

  • Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
  • Higher, spring-actuated fan speeds make sure necessary cooling is delivered
  • Faster engine warm-ups in cold weather
  • Premium bearings and friction liners
  • High torque for turning large fans
  • Lower parts count for easy installation and maintenance

Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance

Product Attributes

BACK PULLEY DIAMETER 7.68 IN
BELT CONFIGURATION 10 PK
Belt Groove Location 3.35 IN
BOLT CIRCLE 6 IN
Center of JB To Top Right Mounting Hole 1.11 IN
Fan Blade Stud Length 1.07 IN
FAN PILOT DIAMETER 5 IN
Heavy Duty TRUE
HORIZONTAL MOUNTING DISTANCE 5.12 IN
Overall Length 8.78 IN
Stud Thread Size .312-18 UNC 2A IN
VERTICAL MOUNTING DISTANCE 2.79 IN

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8483604040
Harmonized Tariff Code (HTS) 8483604040
NAFTA Preference Criterion Code B
OEM's Part Number 98A9786
Warranty Distance 300000
Warranty Distance UOM DH
Warranty Special 7500 Hours
Warranty Special UOM TX
Warranty Time 36
Warranty Time UOM MO
VMRS Code 042003131

Part Interchanges

HORTON 99A9786 Cross Reference

We have 1 alternatives for the 99A9786 by HORTON:
