PETERSON LIGHTING part description

910 Great White® LED Pedestal-Mount Work Light

Features & Benefits

  • 12-high-output Great White® diodes for a bright, even, round pattern
  • Cast aluminum body with heat-dissipating fins for durability and longevity
  • High vibration resistance and low amp draw
  • Compatible with both 12 and 24 volt systems
  • 1350 Lumens

Product Description

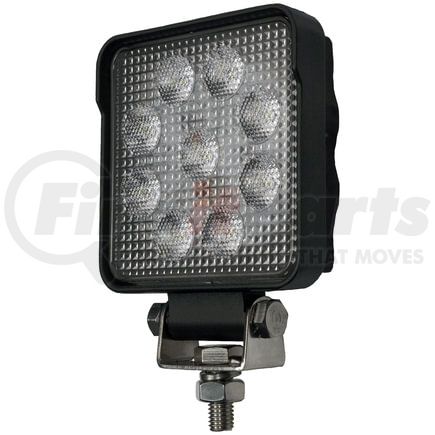

LED WORK LIGHT, SQUARE, PEDESTAL MOUNT 1200 LUMEN 4.29"X4.29" MV

Features & Benefits

  • 9 diodes.
  • Available in retail-friendly Viz Pack.
  • Hardwired design.
  • Multivolt version available.
  • Voltage Regulated.
  • High-output Great White® diodes for a bright, even, flood pattern.
  • Die-cast aluminum body with heat-dissipating fins for durability & longevity.
  • High vibration resistance.
  • 10–30 volt operating range.
  • Draws 1.2A @ 13.5V, 0.59A @ 28V.
  • Operating temperature: -40° – +65° C.
  • Comes complete with stainless steel mounting hardware.
  • IP67 / IP69K Rated.
  • RoHS compliant.
  • Certified to ECE Reg 10.

Product Attributes

Beam Pattern flood
Bulb Technology LED
Bulb/diode Count 9
California Proposition 65 Required Y
Coil Cord N
Container Type box
Exterior Use Y
Family Great White

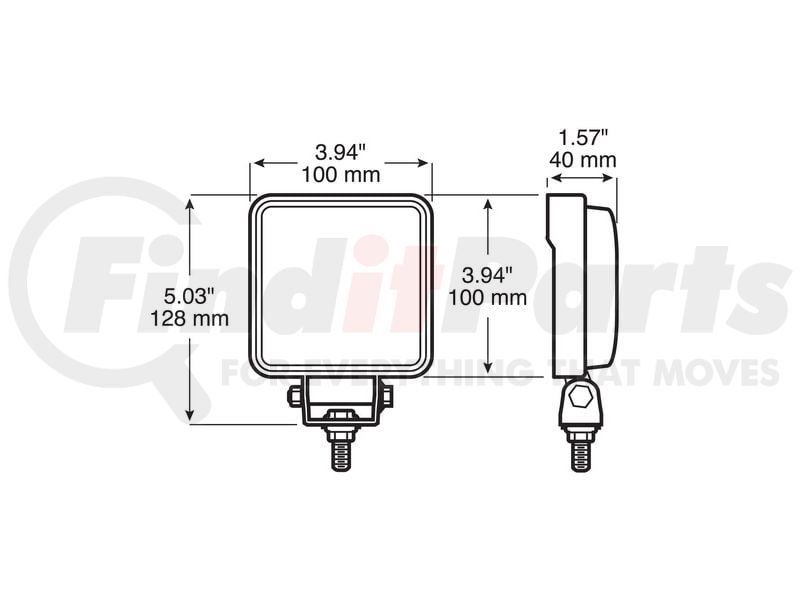

Height 5.03 in
Integral Switch N
Length 3.94 in
Lens Color clear
Light Color white
Marine Use N
Maximum Voltage 30 Volts
Minimum Voltage 10 Volts
Mounting Type stud
Multi-volt Y
Regulatory Compliance ECE
Shape square
Termination stripped wire
Voltage 12 Volts
Width 1.57 in

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464988719
VMRS Code 053006293

Part Interchanges

PETERSON LIGHTING 910-MV Cross Reference

We have 1 alternatives for the 910-MV by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
