MONROE part description

Product Description

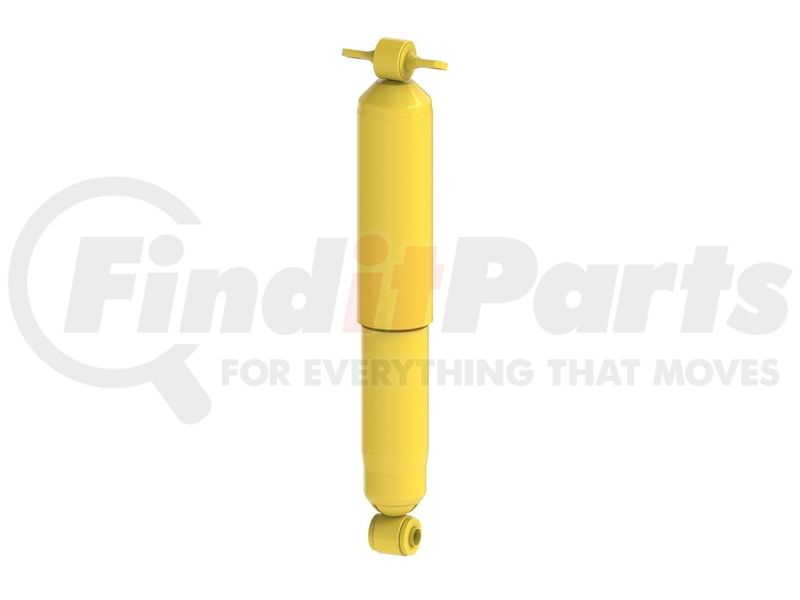

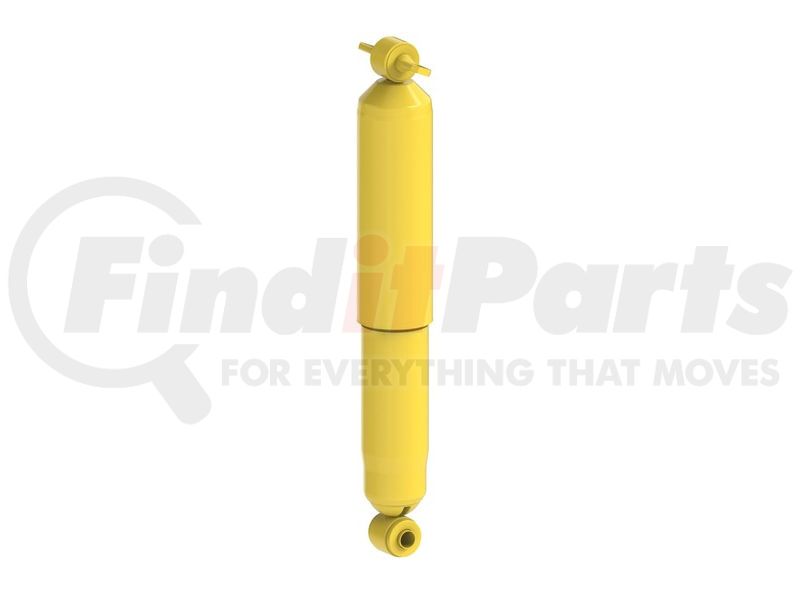

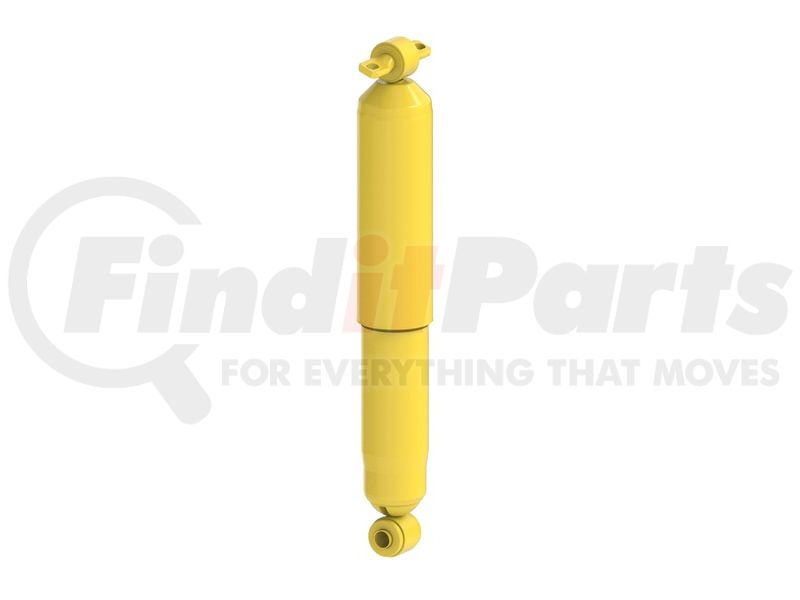

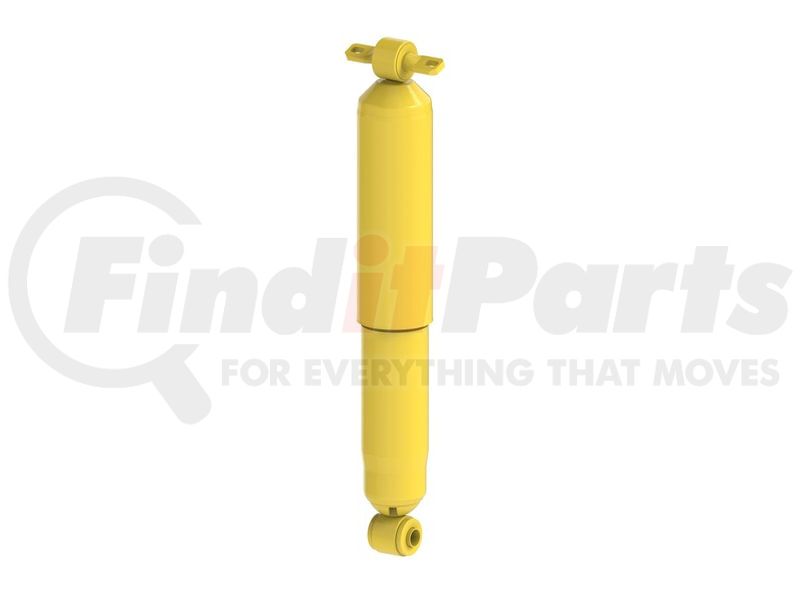

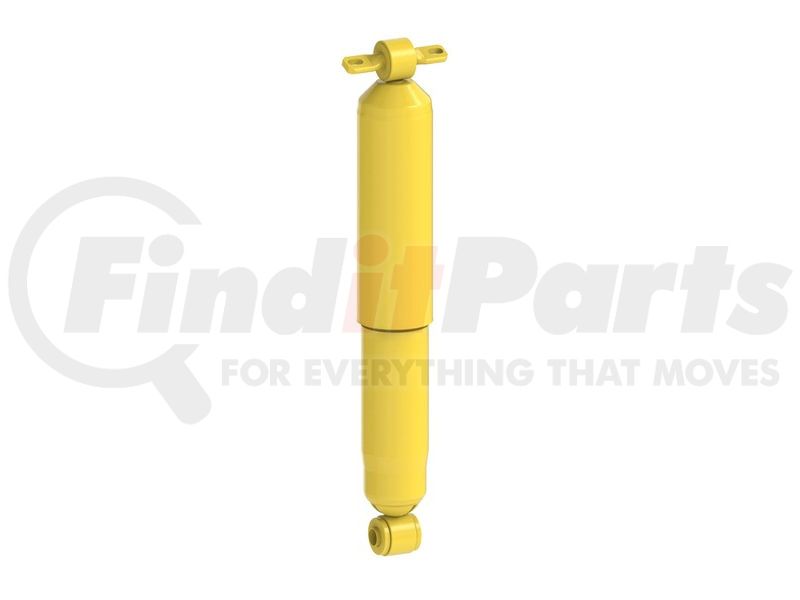

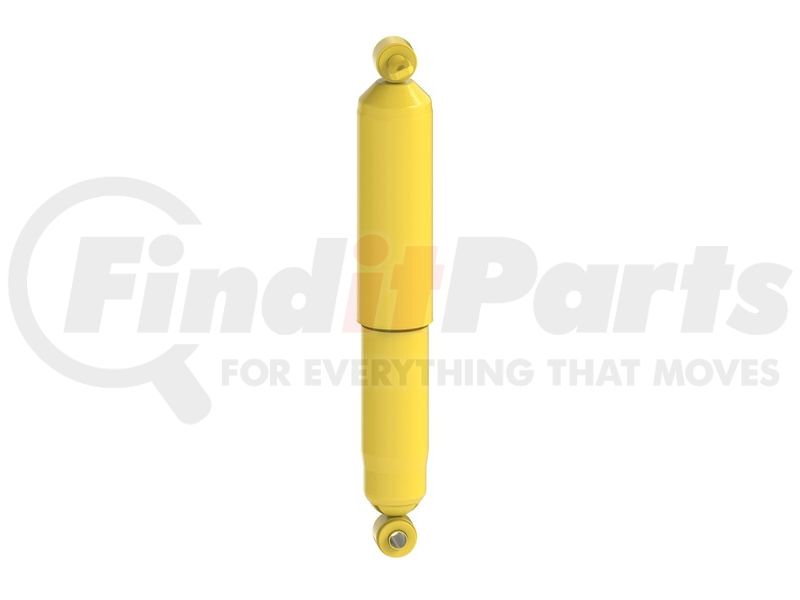

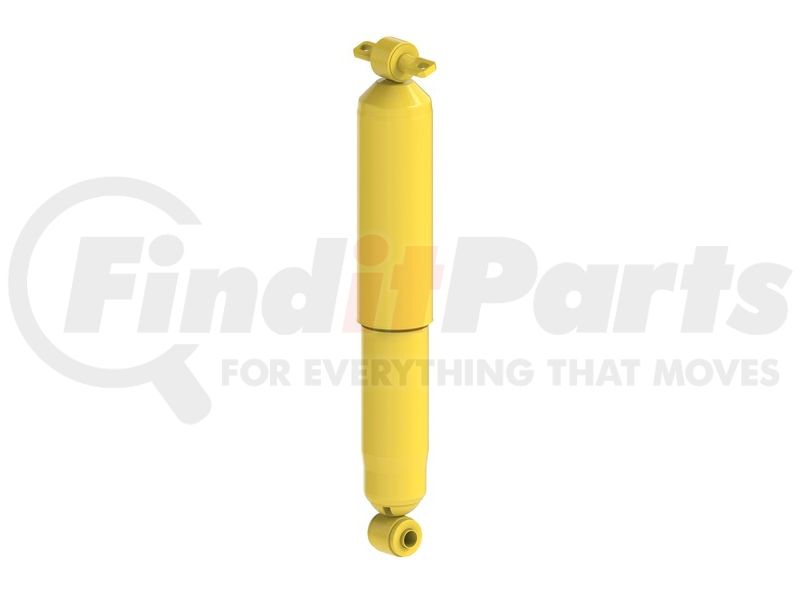

Gas-Magnum Suspension Shock Absorber

Features & Benefits

  • DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
  • BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

9791 LS47
9789 XP7
Dust Shield Included Yes
9783 No
9908 No
9792 No
Part Description Shock Absorber
Compressed Length 16.125 IN
Dust Shield Material Metal
Extended Length 26.75 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s) None
Travel Length 10.625 in
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598049636
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • Chevrolet C35 (1988-1990, 1995-2000)
  • GMC K3500 (1988-2000)
  • GMC K2500 (1988-2000)
  • GMC K1500 (1988-1999)
  • GMC C3500 (1988-2000)
  • GMC C2500 (1988-2000)
  • GMC C1500 (1988-1999)
  • Chevrolet K3500 (1988-2000)
  • Chevrolet K2500 (1988-2000)
  • Chevrolet K1500 (1988-1999)
  • Chevrolet C3500 (1988-2000)
  • Chevrolet C2500 (1988-2000)
  • Chevrolet C1500 (1988-1999)
