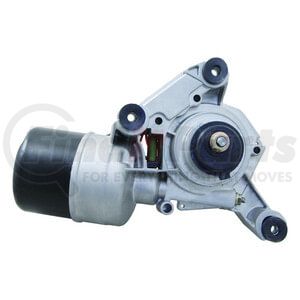

A-1 Cardone 85-4518 - Windshield Wiper Motor
- Part Number
- 85-4518
- Manufacturer
- A-1 CARDONE
- Description
-
Windshield Wiper Motor
details
$10149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
A-1 CARDONE part description
Product Description
Windshield Wiper Motor
Application Summary
Nissan 350Z 2009-06; Saab 9-2X 2006-05; Subaru Baja 2006-04, Forester 2008-05, Impreza 2007-04, Legacy 2004, Outback 2004
Features & Benefits
- Load testing ensures reliable performance.
- Brushes are precisely designed to ensure armature and contacts are properly matched.
- Every motor is assembled with the precise amount of lubricant to ensure quiet operation and long life.
- Gears are designed with a stronger, less brittle material than O.E. to prevent premature wear, striping and breakage.
- Magnets deliver the right amount of torque needed to withstand extreme weather conditions and to compensate for other worn components in the wiper motor transmission linkage.
Windshield Wiper Motor, Wiper Motor
Product Attributes
| Terminal Type | Blade |
| Package Contents | Wiper Motor; Instruction Sheet |
| Product Condition | New |
| Mounting Type | Direct Bolt |
| Washer Pump Included | No |
| E-waste | Yes |
| FAQs | Why won’t the wiper motor work? I have everything hooked up properly. |
| Features and Benefits | Magnets deliver the right amount of torque needed to withstand extreme weather conditions and to compensate for other worn components in the wiper motor transmission linkage. |
| Connector Gender | Female |
| Material | Cast Aluminum |
| Mounting Hole Quantity | 3 |
| Mounting Type | Direct Bolt |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Washer Pump Included | No |
| Wiper Speeds | 2 |
| Wiring Harness Included | No |
| FAQ_Q1 | The wiper motor continues to stop in the middle of the windshield. What’s causing this to happen? |
| FAA_A1 | If the motor does not have hidden wiper blades, the most likely cause of parking misalignment is the crank arm position. Adjust the crank arm angle on the motor shaft to park wipers at bottom of windshield. Refer to a vehicle specific service manual or online material for the “hidden park” reset procedure. |
| FAQ_Q2 | I just installed a new wiper motor and put my old washer pump on and the motor does not work. Is the motor defective? |
| FAA_A2 | The motor is NOT defective. There are some wiper motors that will not operate if the washer pump is defective. This may be the cause of the original motor problem. Bench test wiper motor and washer pump before replacing either. |
| FAQ_Q3 | Why won’t the wiper motor work? I have everything hooked up properly. |
| FAA_A3 | Check the wiring harness ground, terminal ground lug or ground strap. If the motor still does not operate properly, check the switch and switch circuit. |
| FAQ_Q4 | How can I determine if my vehicle is equipped with a moisture sensitive wiper motor? |
| FAA_A4 | Most vehicles equipped with this feature have a rain sensor permanently mounted to the inside of the windshield in front of the rear view mirror. |
| FAQ_Q5 | How do moisture sensitive wipers work? |
| FAA_A5 | A moisture sensor monitors rainfall accumulation on the windshield and provides input to the windshield wiper motor control module. The windshield wiper control module adjusts the wiper motor speed accordingly. |
| Contains Electronic Components | Electrical Motor |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | N |
| Warranty Distance UOM | MI |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8501312000 |
| Harmonized Tariff Code (Schedule B) | 8501312000 |
| Harmonized Tariff Code (HTS) | 8501312000 |
| UPC | 00884548309692 |
Part Interchanges
Fits Vehicles
- Nissan 350Z (2006-2009)
- Saab 9-2X (2005-2006)
- Subaru Forester (2005-2008)
- Subaru Outback (2004)
- Subaru Legacy (2004)
- Subaru Impreza (2004-2007)
- Subaru Baja (2004-2006)
A-1 Cardone Ind.® is a leading manufacturer and distributor of automotive parts and accessories, including master cylinders, clutches, calipers, and other braking system components. Its comprehensive range of products is made using the highest quality materials and the most advanced technology to ensure reliable performance, safety, and reliability. The company traces back its roots more than 35 years ago when Michael Cardone, Sr. remanufactures his first product: the windshield wiper motor. From then on, the name A-1 Cardone has been a go-to brand of automotive enthusiasts and fleet owners when it comes to new and remanufactured products that offer not just reliability but also long-lasting service.
